SYMAP®-Compact+


Made in Germany: All our products are manufactured in Germany.

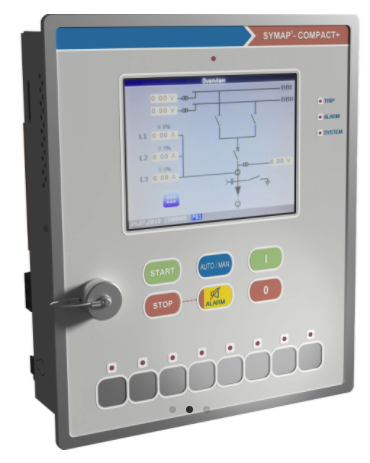

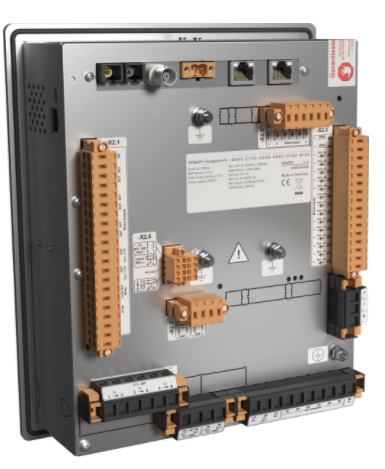

symap-compact+
  • Stainless Steel Housing with Aluminum Front
  • Shallow depth - 90mm Depth with Terminals
  • Full Colour Touch screen Display
  • Remote Display (optional)
  • Customizable Menu Screens
  • Multilingual HMI
  • 8× Programmable LEDs
  • Pluggable Connections
  • Expandable with Additional I/O Boards
  • Two USBs Connection as Standard
  • RS485 with MODBUS RTU as standard

Overview


symap-compact+
  • Control and interlocking of up to 8 Switching Elements
  • IEC: 61850, 60870-5-103, 104, Modbus RTU/TCP, Profibus DP, etc.
  • Up to 5 communication protocols can be used in the same time
  • High Speed GOOSE
  • 4 Processors for Ultimate Reliability and Speed
  • Self-Diagnostic
  • Almost all protection functions in standard version
  • Four Independent Protection Settings Groups
  • Independent and simultaneous protection for CT1 and CT2
  • Troubleshooting Pages
  • Event-driven architecture system with powerful extension capabilities

Applications:

  • Feeder protection, Control and Monitoring;
  • Overcurrent Protection;
  • Generator Protection, Control and Monitoring;
  • Generator Protection, Engine/Machine control and protection;
  • Transformer Protection;
  • Generator+Transformer Protection
  • Motor Protection;
  • Medium Voltage Distance Protection;
  • Line differential protection;
  • Voltage and Frequency Protection;
  • Autorecloser and Check Synchronism;
  • Paralleling and Protection;
  • Advance AC&DC Protection, monitoring and signal concentrator;
  • Dynamic Grid Support;
  • Medium Voltage Soft Starters;;
  • AC&DC Protection and Monitoring with IEC61850 or other protocol
DEVICE VARIANT
F1
F2
F3
F4
GC
Dimensions
Housing dimensions WxHxD = (210x250x87)mm
Front plate dimensions (WxHxD = (210x250x87)mm
Cutout (WxH= 192x232)mm
LED indications
3 Status LEDs (TRIP: red, ALARM: yellow, SYSTEM: red/green)
8 Multicolour alarm LEDs with slide-in strips
Membrane keyboard
6 membrane keys (UP, DOWN, KEY, ACK, ON, OFF)
Display
Graphical LC-Display / Touchscreen (320x240 pixel)
Detached HMI
()
()
()
()
()
Current measurement
1x CT1 (3-phase; 0-32 xIn for HW v1-2.x)
1x CT1-MP (Seperated Measuring- and Protection-CTs)
1x CT2 (3-phase; 0-32 xIn for HW v1-2.x)
1x CT-GND1 (1-phase; 1A / 5A / 2-2000mA and 3000mA for HW 1-2.x)
1x CT-GND2 (1-phase; 1A / 5A)
Voltage measurement
1x PT1 (3-phase; 0-1000VAC for HW1-2.x)
-
-
1x PT2 (3-phase; 0-1000VAC for HW1-2.x)
-
-
-
1x PT3 (3-phase; 0-1000VAC for HW1-2.x)
-
-
-
1x PT-GND1 (1-phase: meas.)
-
Binary Inputs
18 pcs. (24/48/60/110/220V DC, 110/230V AC) for HW v1-2.x)
Additional up to 64 pcs. with EBS-Boards
Binary Outputs
12 pcs (potential-free contacts, NO)
Additional up to 64 pcs. with EBS-Boards
Analog Inputs and Outputs
Up to 4 Analog Inputs and 5 Analog Outputs
Comunications Interfaces
1x Mini-USB (side of housing; for parameter setting)
1x RS485/422 (Modbus RTU; half- and full duplex)
1x USB-A (at front plate; for parameter setting)
1x CANBUS1
1x CANBUS2
1x RJ45 for EBS and as Serviceport/parameter setting
1x RS485 for Profibus DP
1x (RJ45 or FO) for: IEC 61850, IEC60870-5-104 and Modbus TCP
2x (RJ45 or FO) for:IEC 61850, IEC60870-5-104 and Modbus TCP
1x RS485 or FO for: IEC 60870-5-103 or Modbus RTU (redundant)
Cutout (WxH= 192x232)mm
1x IRIG-B
1x Line Differential Communication over FO for 2km/20km
DEVICE VARIANT
F1
F2
F3
F4
GC
Protection functions (ANSI Code)
21
Distance protection
-
-
()
()
()
21B
Generator Backup protection
-
-
-
21FL
Fault Locator
-
-
24
Overexcitation U/F
-
-
25
Synchrocheck
-
-
-
25A
Automatic Synchronisation
-
-
-
()
27
Undervoltage
-
-
27Q
Reactive Power/Undervoltage
-
-
27T
Undervoltage, time-dependent
-
-
32
Directional Power
-
-
32N/G
Zero Power
-
37
Undercurrect
40
Loss of Field
-
-
46
Negative Phase Sequence I2
46BC
Negative Phase Sequence I2/I1 (broken conductor)
47
Phase Sequence / Phase Blalance
-
-
48
Motor Start Up (incomplete sequence)
49
Thermal Replica
49R
Thermal Replica (Rotor)
50BF
Breaker Failure
50/51
Time Overcurrent
51LR
Locked Rotor
50/51G/N
Time Ground Overcurrent
51/46VR
Overcurrent (voltage restrained)
-
-
52
Pole Discordance
59
Overvoltage
-
-
59AV
10 min Overvoltagre RMS protection
-
-
59N/G
Neutral Voltage Displacement (NVD)
-
64REF
Restricted Earth Fault (REF)
-
66
Of Starts (Motor)
67
Directional Time Overcurrent
-
-
67G/N/W
Directional Time Ground Overcurrent
-
74TC
Trip Circuit Supervision
78
Vector Surge
-
-
79
Automatic Reclose (AR)
81
Under-/Overfrequency
-
-
81R
RoCoF (df/dt)
-
-
81RAW
Frequency Supervised Average (DF/DT)
-
-
86
Lockout relay
87
Transformer Differential protection (2-winding only!)
()
()
()
()
()
87LD
Transformer Line Differential
()
()
()
()
()
95i
Harmonics Stabilizer
G59/G99
(ANSI 78 and 81R acc. to British GridCode)
-
-
CLD
Cold Load Detection
CTS
Current Transformer Supervision
DCVM
DC Voltage Monitoring
-
-
MSM
Motor State Monitor
PTS
Potential Transformer Supervision
-
-
SGF
100% stator Ground Fault protection (Soon available)
-
SOTF
Switch-On-To-Fault
TIG
Transient/Intermittent Ground fault protection
-
()
()
()
()
VG
Zero Admittance Ground fault protection
-
()
()
()
()
DEVICE VARIANT
F1
F2
F3
F4
GC
Control and Interlocking
Control and interlocking for up to 8 switching elements
Power Management
Generator Control
-
-
-
-
Measurement (indication)
Current measurement values
Voltage measurement values
-
-
Frequency measurement values
-
-
Power measdurement values
-
-
Energy measurement values
-
-
Power factor values
-
-
MIN-/MAX-current measuring values (statistic)
MIN-/MAX-current measuring values - time range
-
-
Recording functions
Alarm control
Active Alarms/Events
Event recorder
Fault recorder
Disturbance recorder
Counters
Operating hours
Energy counters
-
-
Switching operations (breaker control)
Monitoring functions
Wire fault supervision: Binary inputs
Short circuit supervision: Binary inputs
LVM - Limit value monitoring
Logical functions
PLC (programmable logic control)
Graphical functions
Configurable menu pages
Vector representation of measuring values
Representation of harmonics
Synchronoscope
-
-
-
-
GOOSE
128 Virtual Inputs
()
()
()
()
()
128 Virtual Outputs
()
()
()
()
()
Security
User-level/role based security access
Password protected access by HMI
Parameter for blocking settings change over Ethernet
Ethernet service port isolated access
Network Protocols and Time Synchronisation
RSTP (Rapid Spanning Tree Protocol)
()
()
()
()
()
HSR (High-availability Seamless Redudancy), IEC62439-3
()
()
()
()
()
PRP (Parallel Redudancy Protocol), IEC62439-3
()
()
()
()
()
SNTP (Simple Network Time Protocol)
()
()
()
()
()
PTP (Precision Time Protocol)
()
()
()
()
()
IRIG-B (Inter-range instrumentation group)
()
()
()
()
()
Hot standby-dual-homing
()
()
()
()
()

An optimal choice for retrofit projects

Technical drawings
One of the smallest deices on the market with advanced functionality in hardware and software.

The SYMAP® -Compact + is designed in a compact housing with a small depth. The 90 mm depth including terminal plugs is suitable for almost any compartment, for both shallow and/or narrow compartments. On the retrofit projects it can save additional mechanical extensions and work when mounting and adjusting the device on the compartment's door.

Housing dimensions (WxHxD): (210x250x87)mm
Diimensions front plate (WxHxD): (210x250x4)mm
Cutout (WxH): (192x232)mm

Depth: 85mm


The SYMAP Compact + has up to 5 microcontrollers for better performance and reliability. One microcontroller for Measurement and Protection functions (MU), one for Control functions (CU), one for Graphic (GU), one for Communication (ComU) and one for additional inputs and outputs (EBS). If the touch screen is broken or the whole graphic unit, the device can still work, or if the robust communication card is in failure the protection and control will still work. If the control or protection is in failure the communication card can send remotely the alarm message that the device is in failure. The intermedium communication between microcontrollers covers different ways of watchdogs and self-diagnostic task.

Two independent microcontrollers (PCB cards) for ethernet communication. One for communication protocols, network protocols and for service task as: parametrization, protection and event history download and one independent ethernet port and microcontroller for service task as parametrization, protection and event history download for isolated connection for better cybersecurity.

FIVE MICROCONTROLLERS:

 1. Control Unit - CU
 2. Measurements and Protection functions - MU
3. Graphic Unit - GU
4. Communication - ComU
5. Extension Board System (I/O) - EBS
symap-compact+

Programmable Logic Functions

symap-compact+

Harmonics

[ HMI ]

SYMAP® Compact+ F(n) HMI is highly customizable and user friendly.

    Display:
  • Large full color touch screen with user-friendly interface
  • 4 configurable user pages: single line, measurement indications, text, buttons, bar graphs, graphics, configurable background, graphic elements, text, buttons, button color, page links…
  • Adjustable parameters over HMI
  • Password protected access and user level role
    Keys:
  • Large full color touch screen with user-friendly interface

    LEDs:
    • 8 programmable LEDs
    • 3 status LEDs (system and user programmable status)
    • Graphical, programmable LEDs on touch screen
symap-compact+

Protection functions

symap-compact+

Synchronization

symap-compact+

Vector Diagram

[ HMI ]

SYMAP® Compact+ F(n) HMI is highly customizable and user friendly.

    Display:
  • Large full color touch screen with user-friendly interface
  • 4 configurable user pages: single line, measurement indications, text, buttons, bar graphs, graphics, configurable background, graphic elements, text, buttons, button color, page links…
  • Adjustable parameters over HMI
  • Password protected access and user level role
    Keys:
  • Large full color touch screen with user-friendly interface

    LEDs:
    • 8 programmable LEDs
    • 3 status LEDs (system and user programmable status)
    • Graphical, programmable LEDs on touch screen
symap-compact+

Protection functions

[ HMI]

SYMAP® Compact+ F(n) HMI is highly customizable and user friendly.

    Display:
  • Large full color touch screen with user-friendly interface
  • 4 configurable user pages: single line, measurement indications, text, buttons, bar graphs, graphics, configurable background, graphic elements, text, buttons, button color, page links…
  • Adjustable parameters over HMI
  • Password protected access and user level role
12V DC or 24V DC or 48V DC or 60 V DC
or 110V AC/DC; 220V DC;230V AC
Event Recorder

The event history saves up to 10.000 events by using the first-in-first-out (FIFO) principle. Each event provides information such as:

the consecutive number
the event number
the event text
date and time stamp
Events are recorded with a temporal resolution of 1ms, and will be displayed in chronological order. The latest event is on the top of the event list.
The total number of protocols which can be run simultaneously depends on the number of communication interfaces.
The protocols under Ethernet interface: Modbus TCP, IEC61850 and IEC60870-5, can always work simultaneously.

COMMUNICATION INTERFACE:
STANDARD PORT
One USB-A (at front plate; for parameter setting)
One Mini USB (at side for parameter setting)
One CANBUS 1 (factory protocol)
One CANBUS 2 (factory protocol)
One RS485 port

OPTIONS
One Fiber optic interfaces (Line diff. Protection)
One RS485 port (Modbus RTU or IEC60870-5-103)
One RJ45 (side) service port
One RJ45 (rear) port
Two RJ45 (rear) port
One Fiber (rear) optical port
Two Fiber (rear) optical port
IRIG-B port

PROTOCOLS
Profibus DP (Option)
Modbus RTU (Standard)
Modbus RTU redundant (Option)
Modbus TCP/IP (Option)
IEC60870-5-103 (Option)
IEC60870-5-104 (Option)
IEC61850 Ed.1 & Ed.2 (Option)
Proprietary protocols

Network Protocols and Time Synchronization
RSTP (Rapid Spanning Tree Protocol)
HSR (High-availability Seamless Redundancy), IEC 62439-3
PRP (Parallel Redundancy Protocol), IEC 62439-3
SNTP (Simple Network Time Protocol)
Hot Standby-dual-homing
IRIG-B
GOOSE
SYMAP ® Compact + with his numbers of virtual inputs and outputs allows to extend the use of GOOSE messages in diverse applications. Most important it can provide additional safety and flexibility in wide range of applications.

128 Virtual inputs 128 Virtual outputs


High-speed GOOSE
Under normal conditions the GOOSE message total time with application time is ca. 0,7 - 1,5 ms. Under GOOSE performance test (abnormal conditions) the time can take up to 1- 1,5 ms longer in 99% of logs and in 1% a bit longer, but with zero message lost and without retransmissions. Note!

The GOOSE performance test created by KEMA DNV GL is the only test which shows the reliability of the GOOSE message in substations.

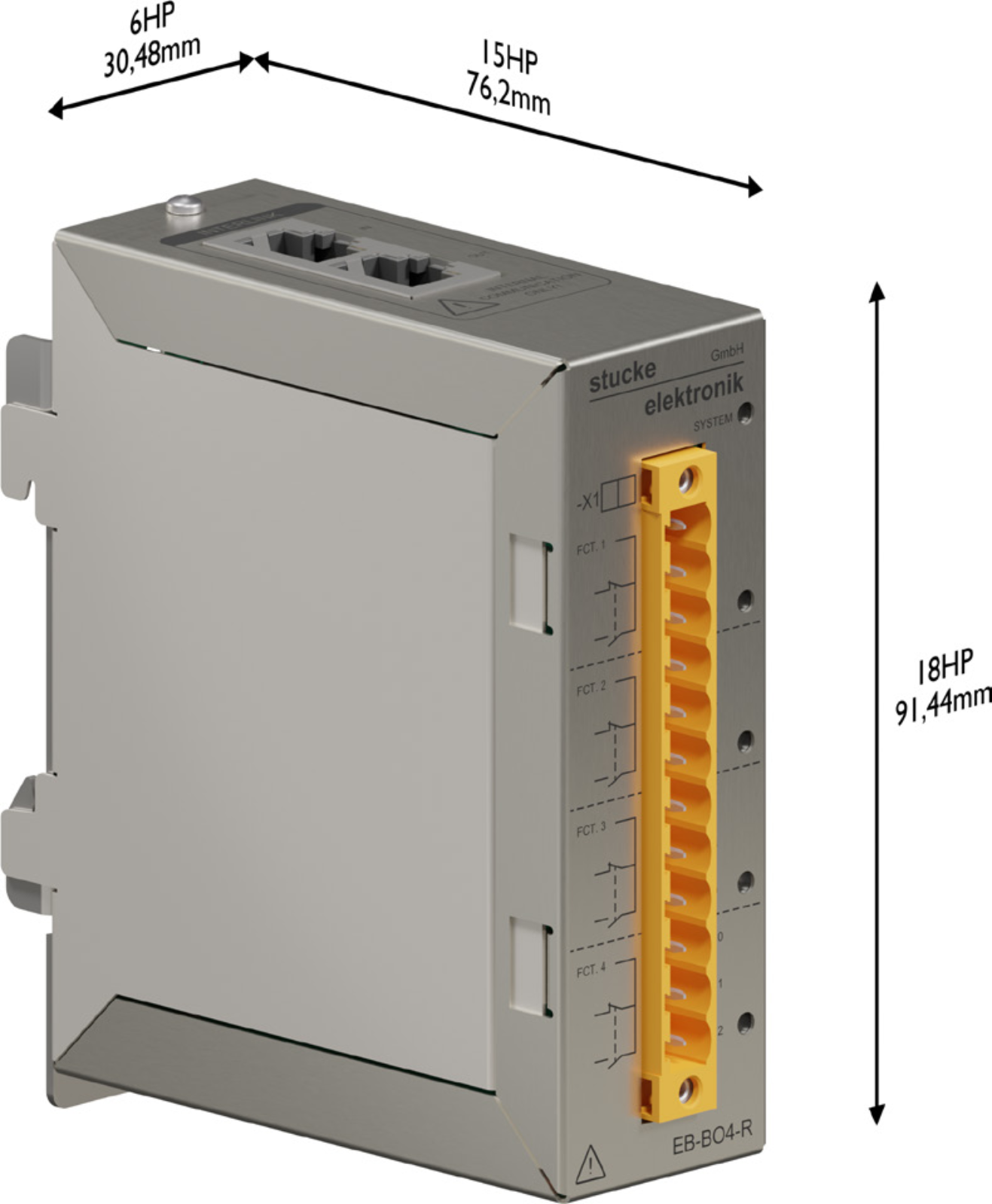

[ EXTENSION BOARD SYSTEM - EBS ]

  • The number of binary inputs and outputs can be increased with Extension Board System (EBS).
    The Extension Board System consists of several board types with different functions.
    Each board is designed for DIN rail mounting according to standard DIN TS35.
    The maximum numbers of binary inputs and outputs on extended boards not including the basic unit SYMAP® - Compact + are:

    60 EBS binary inputs 30 EBS binary outputs

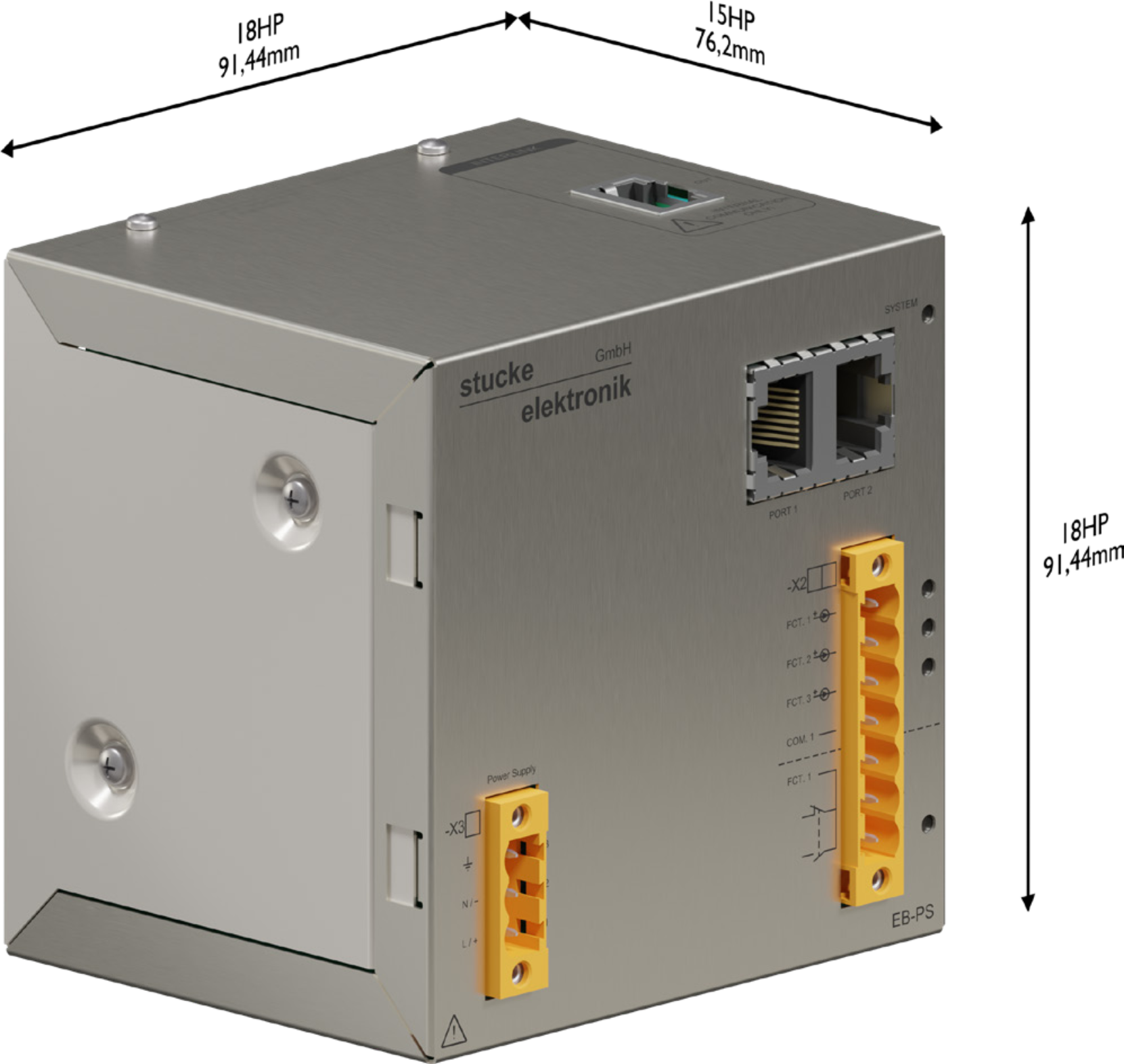

service-image






• 1× System-LED
• 3×RJ45 port and 3×Binary inputs with LED status
• 3 BIs (Un: 12/24/48/60/220 V DC; 110 V AC/DC; 230 V AC: parametrizable)
Housing dimensions: (B×H×T): (91,5x91,5x76,2) mm

EB-PS

service-image






8 × Binary inputs with LED status
• Two independent voltages groupss
• BIs (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parametrizable)
Housing dimensions: (B×H×T): (91,5x30,5x76,2) mm

EB-BI8-A

service-image

EB-BI10-OC

service-image









• 10 × Binary inputs (opto-couplers)
• Two independent voltages groups
• BIs (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parametrizable)
Housing dimensions: (B×H×T): (91,5x30,5x76,2) mm






6 × Binary outputs (NO contacts)
Housing dimensions: (B×H×T): (91,5x30,5x76,2) mm

EB-BO6-R – 6

service-image

EB-BO4-R – 4

service-image









• 4 × Binary outputs (change-over contacts)
Housing dimensions: (B×H×T): 91,5x30,5x76,2) mm
